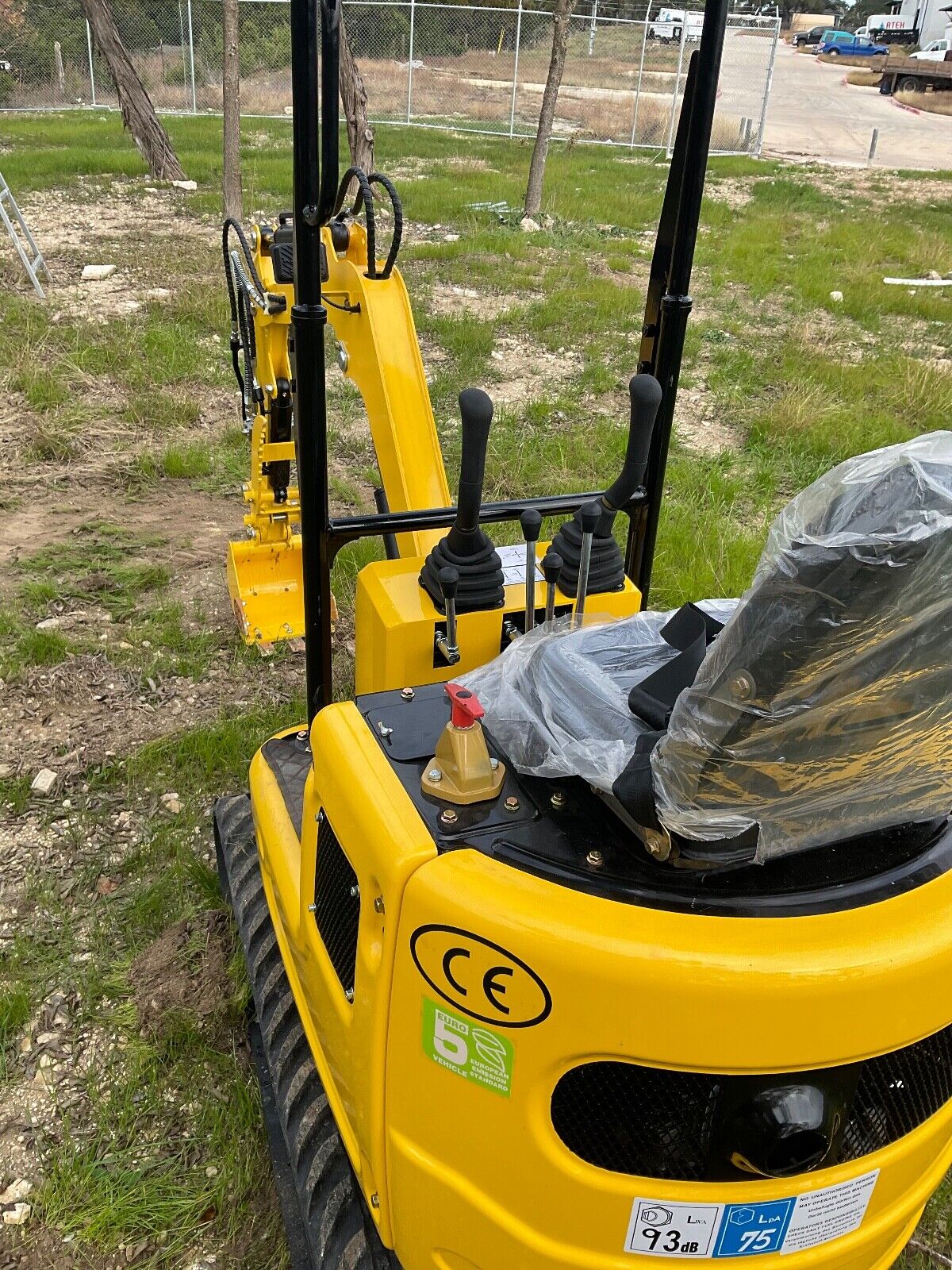

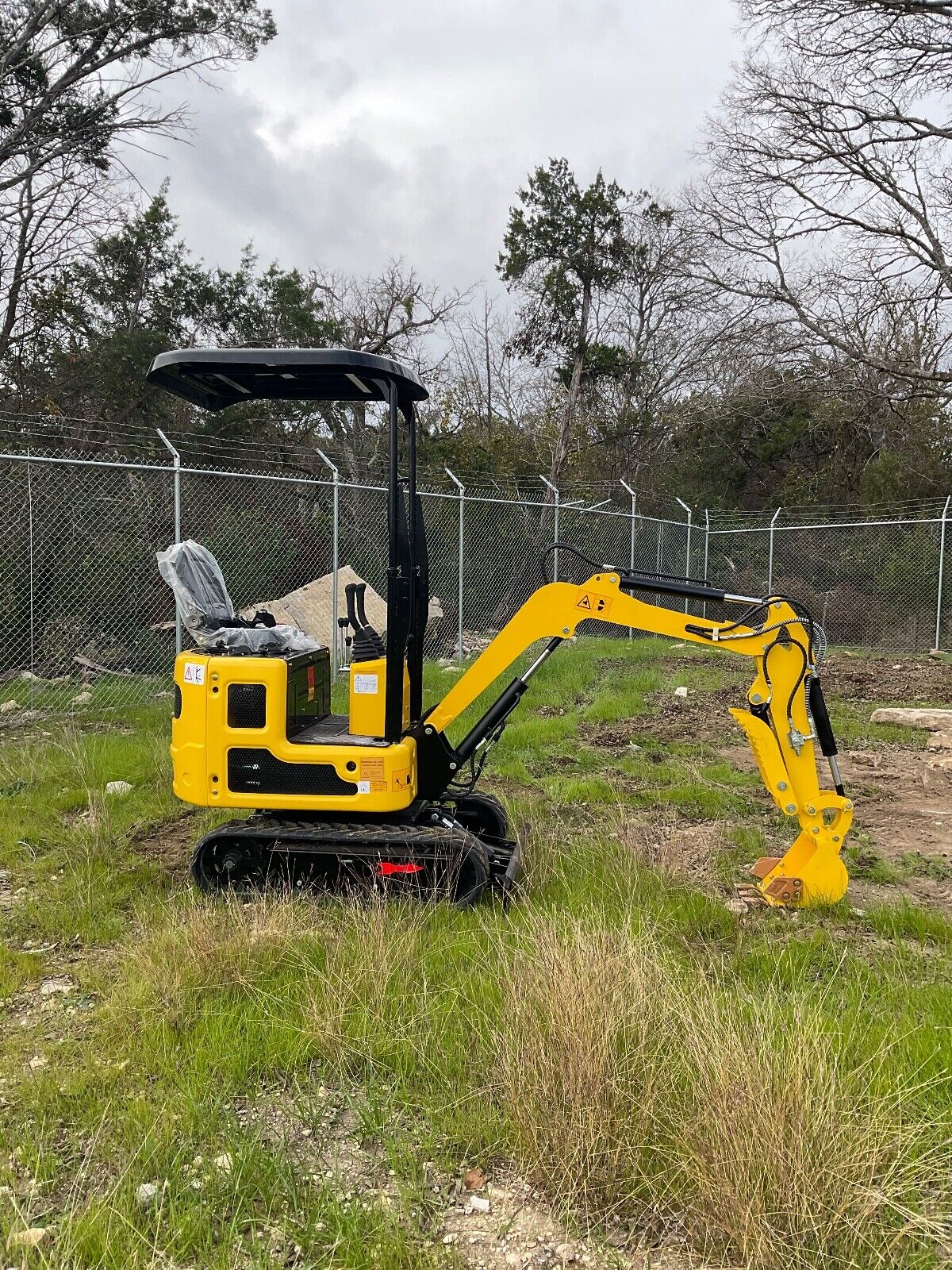

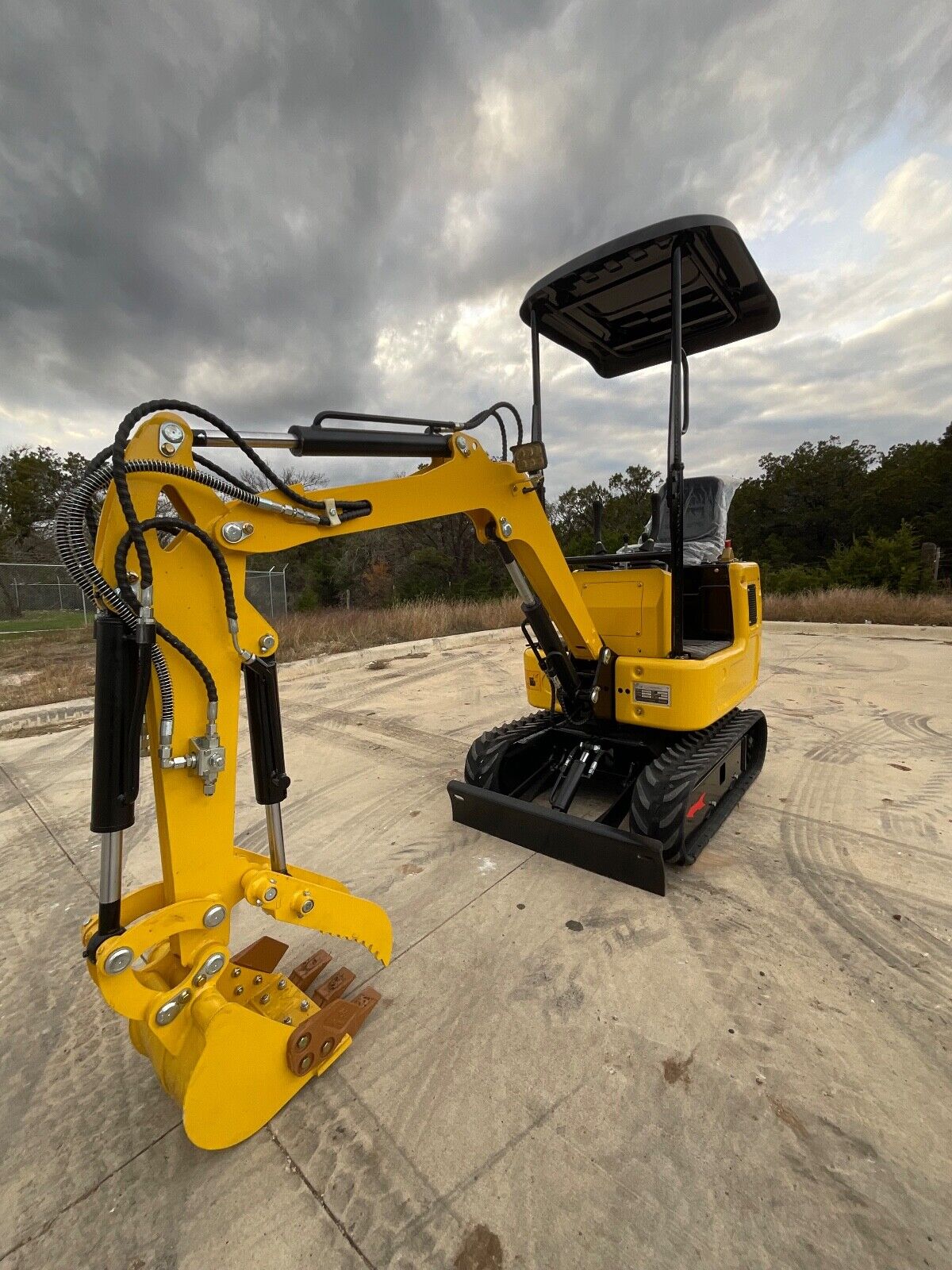

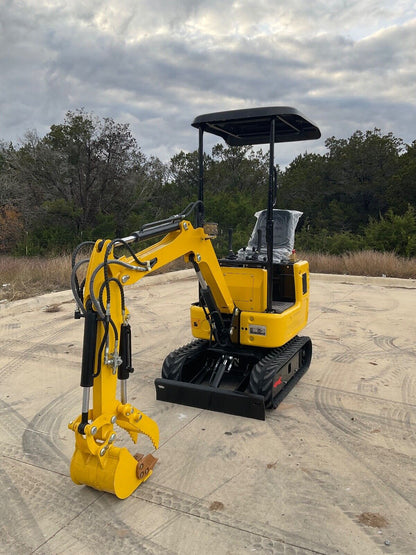

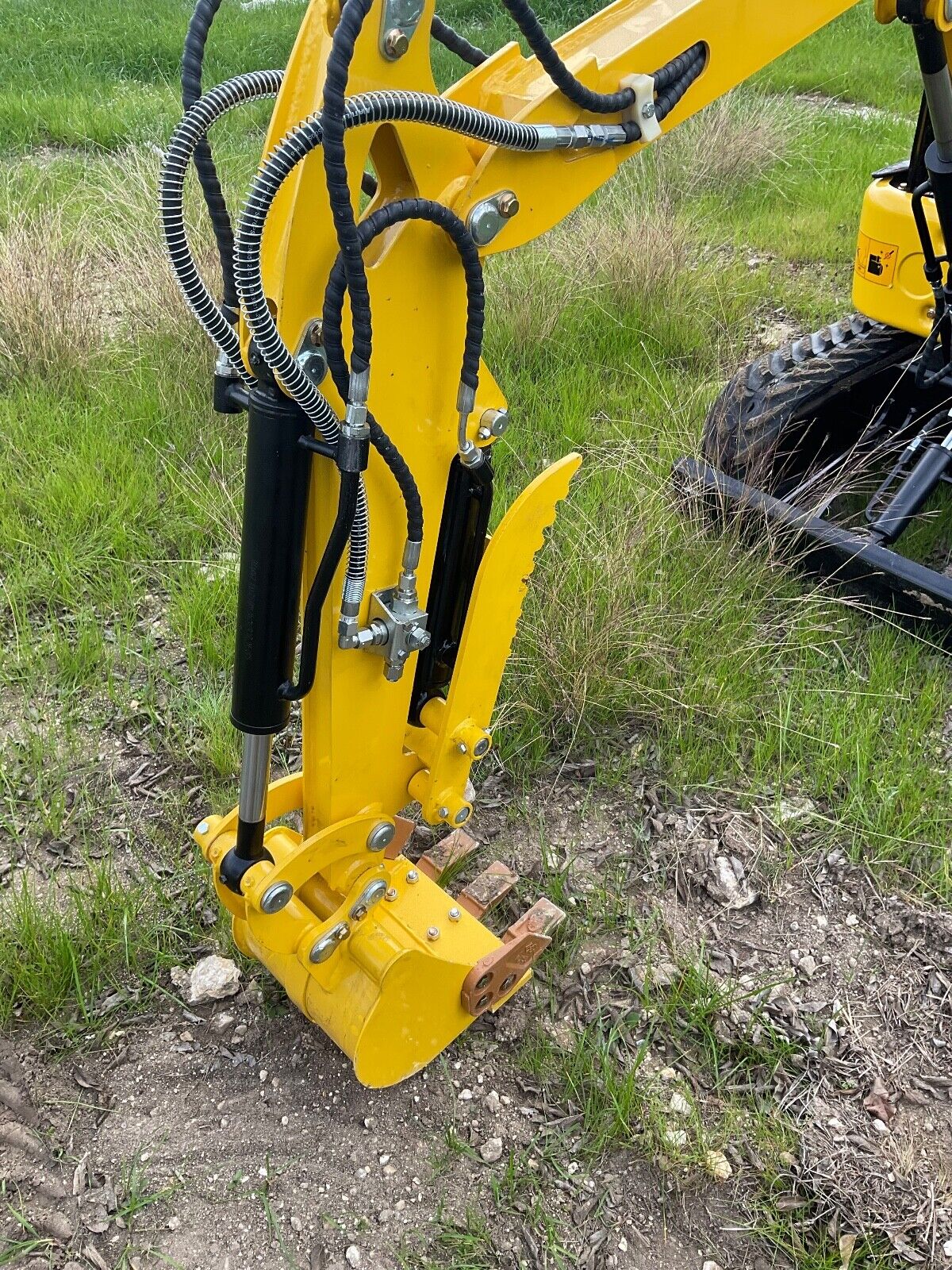

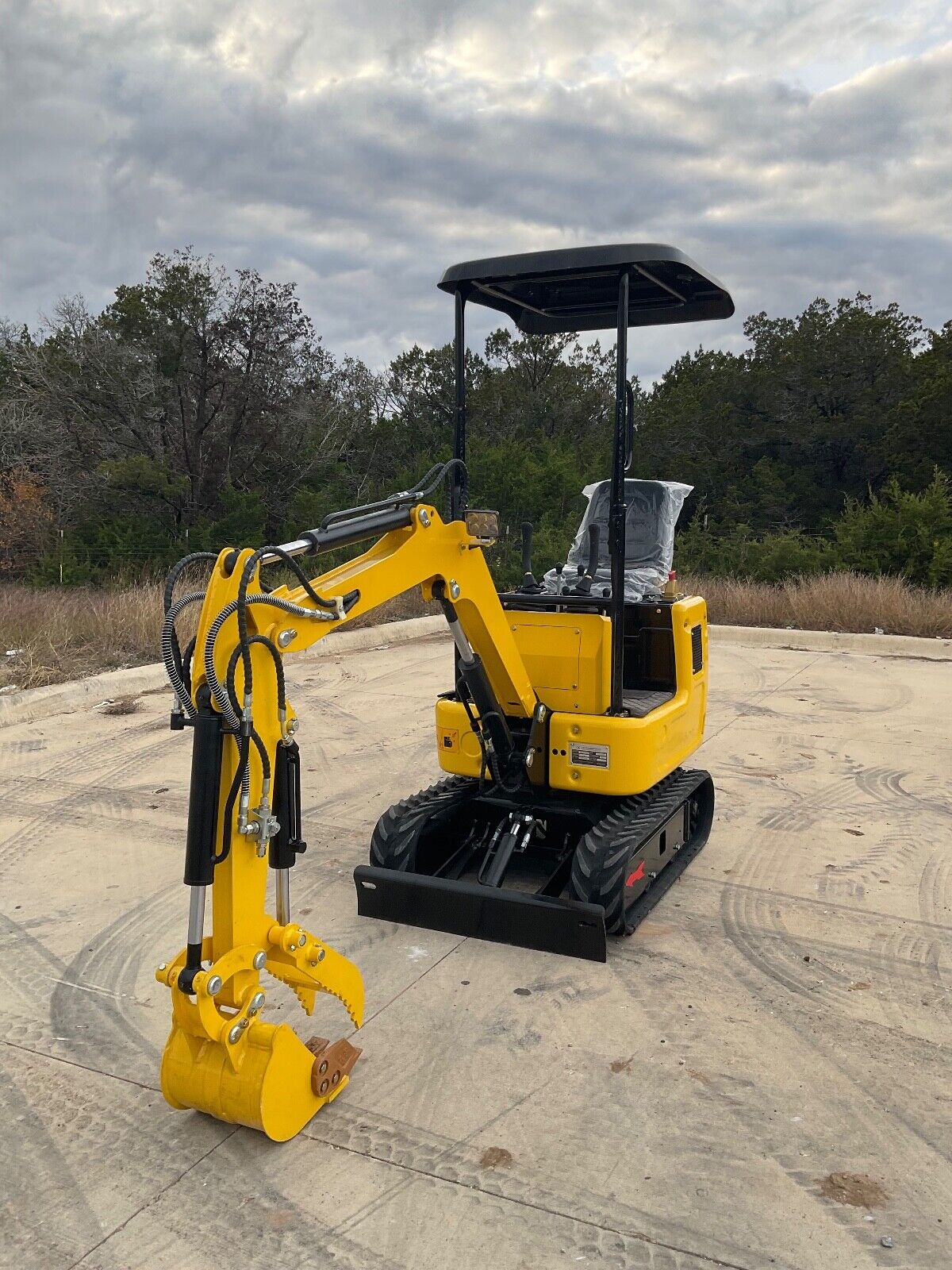

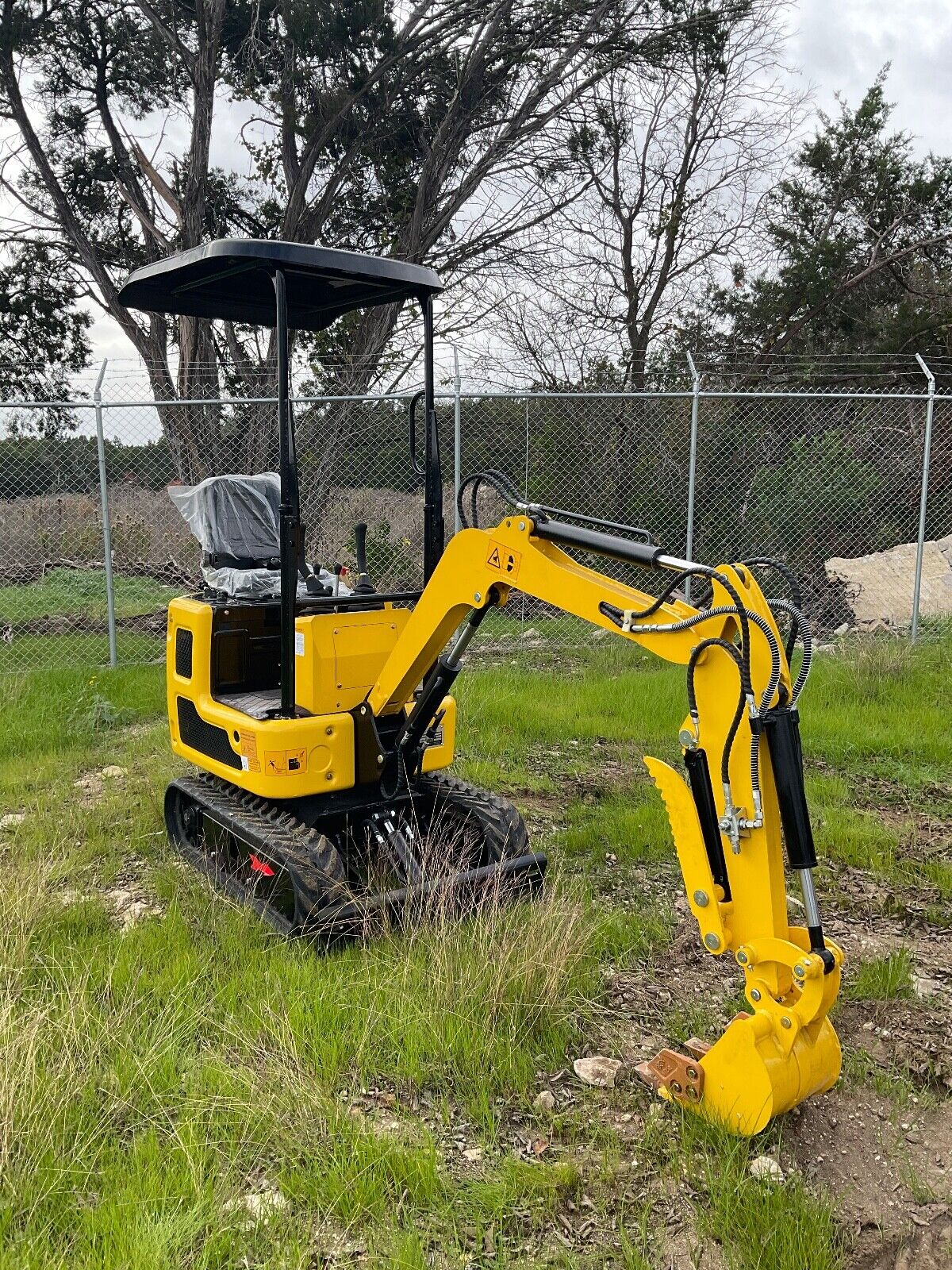

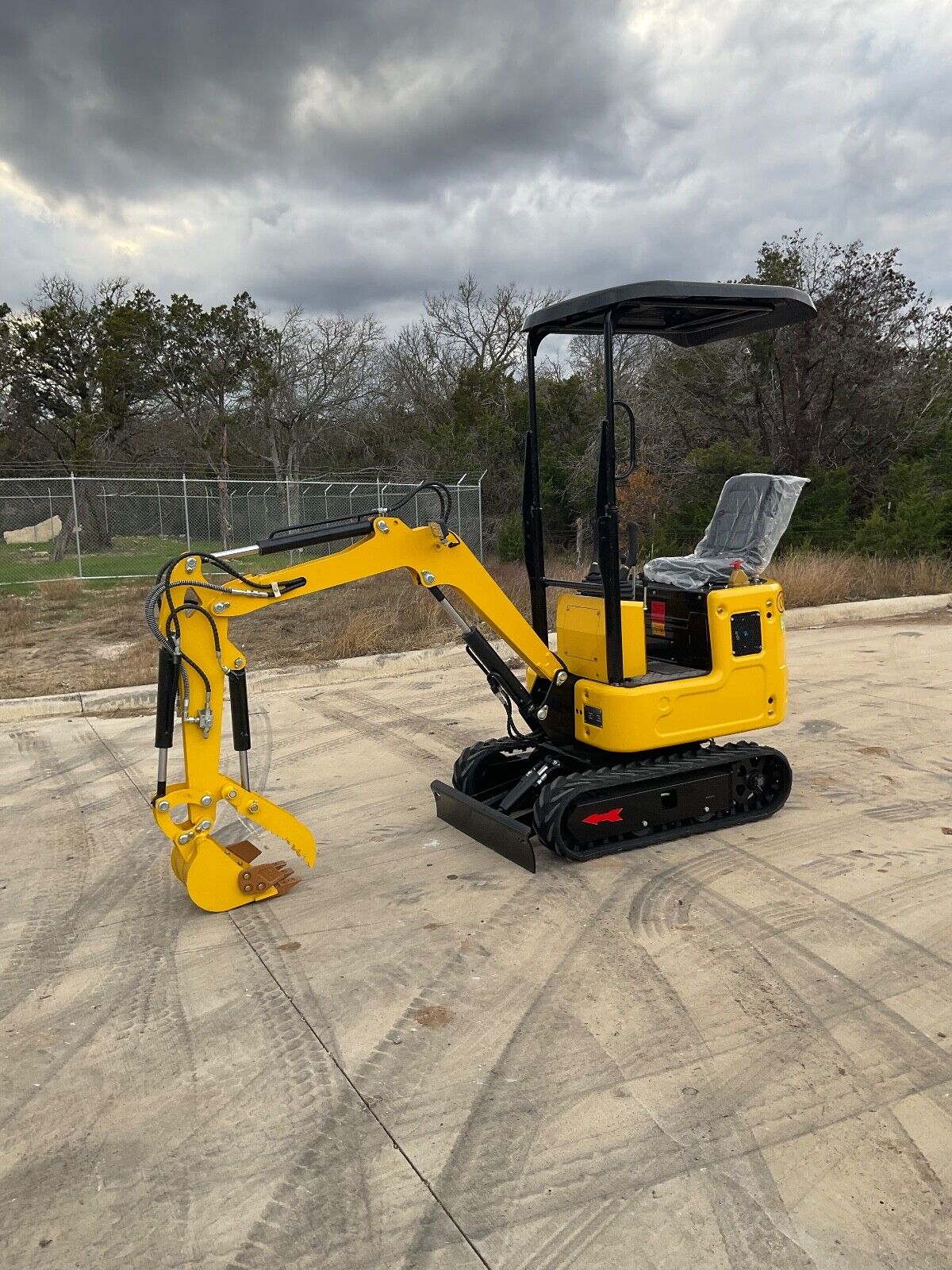

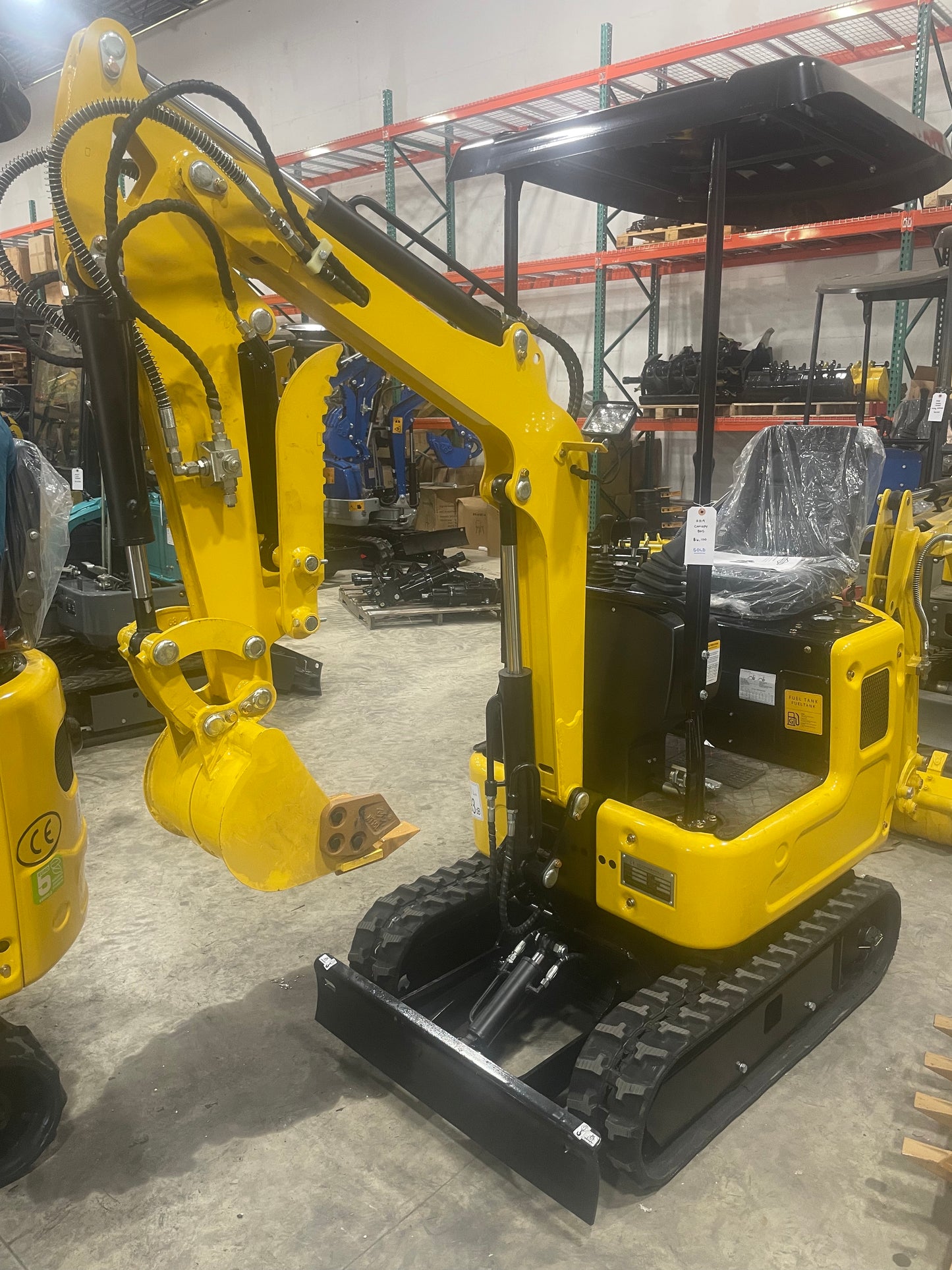

1 TON R319 Mini Excavator w/ Canopy:B&S XR210 EPA Gas Bucket/Hydraulic Thumb

Machine Specs:

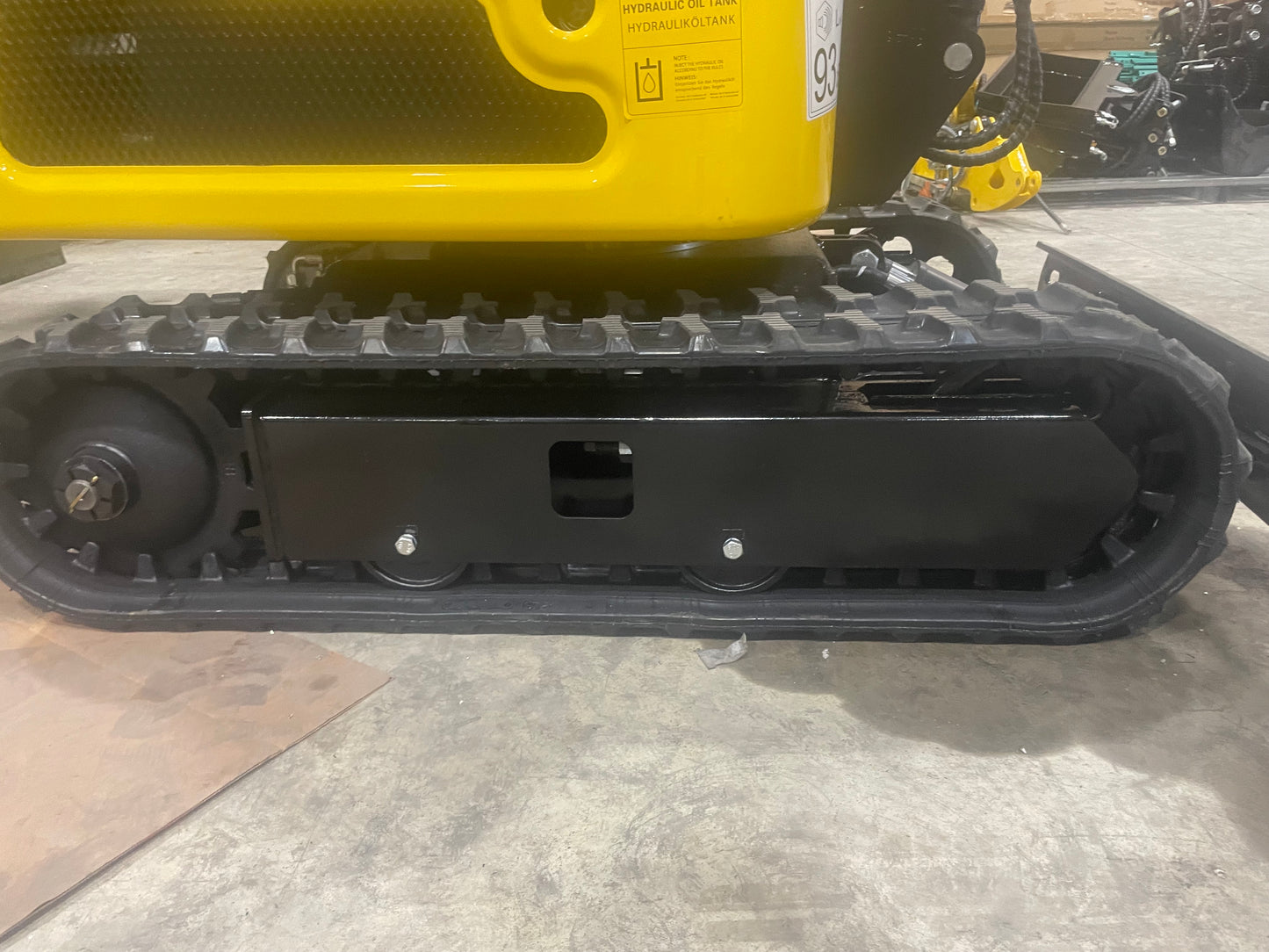

• Rubber Track

• 1 Ton Hydraulic Digger

• Equipped With An EPA Certified Briggs & Stratton XR2100 Engine

• 13.4 Mechanical Horsepower

• 4.9 Foot Digging Depth

• V-Shaped Rubber Track Pattern For Stable Walking

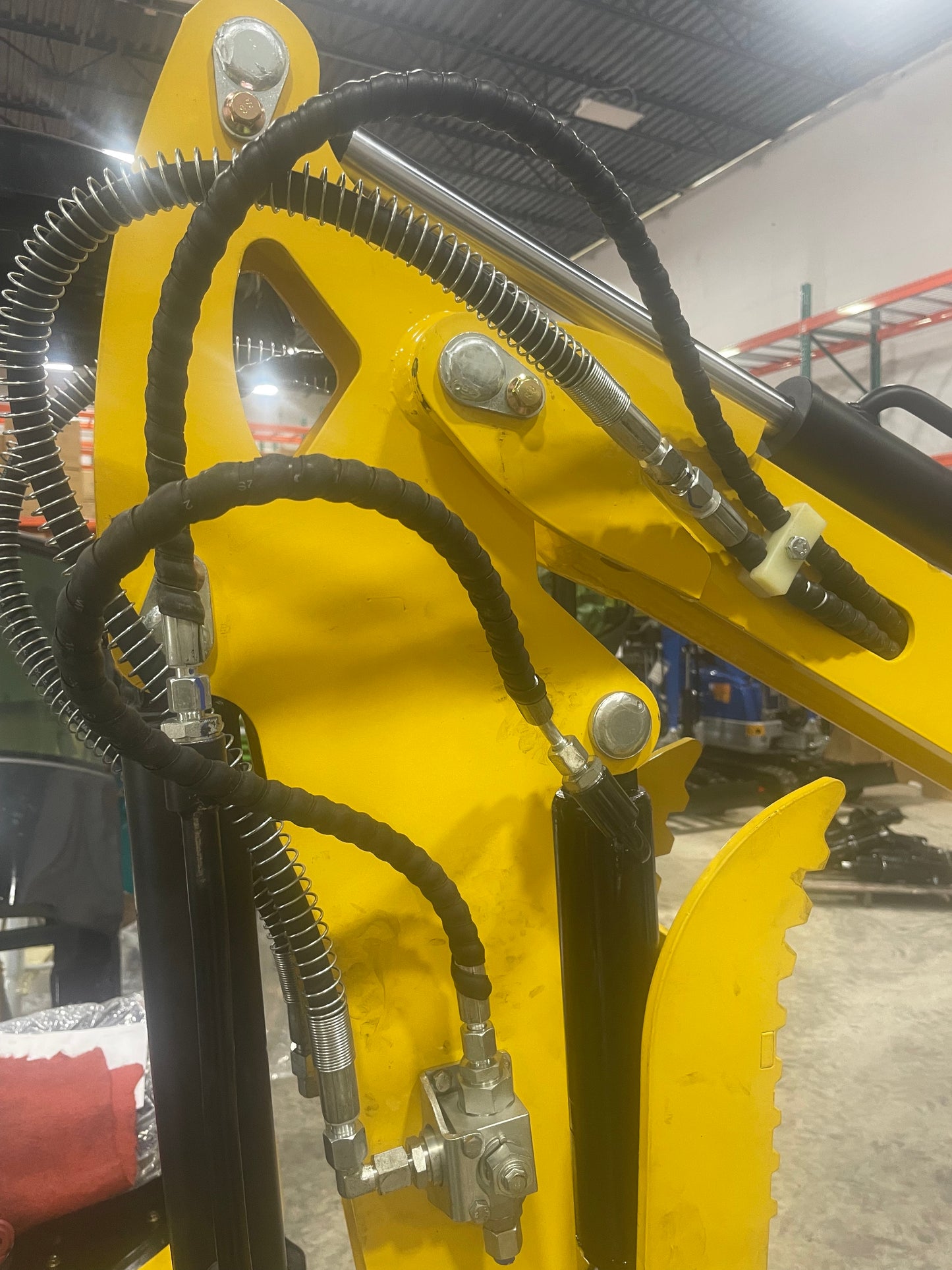

• Hidden hoses

• Weight In Total: 1764 lb (800kg)

• Operating Weight: 1984 lb (900 kg)

• Overall Dimensions LWH”: 109” x 37” x 87” (9ft L x 3ft W x 7.25ft H)

• Walking Speed: 0-1.5 km/h

• Gradeability (Climbing Angle): 30%

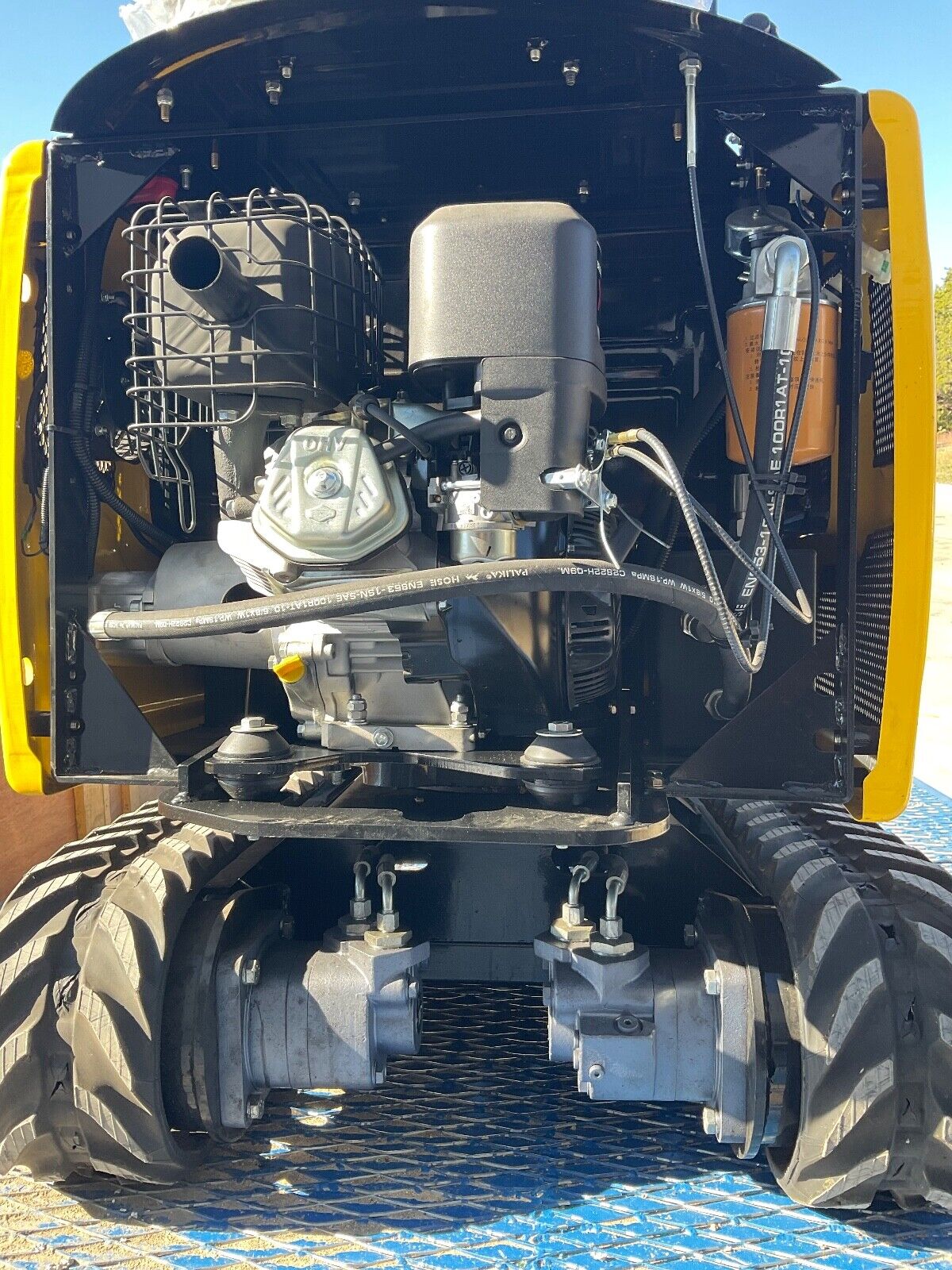

ENGINE:

• Brand & Model: Briggs & Stratton XR2100

• Rated Power: 10 kw

• Engine Rotate Speed: 3600 rpm

OIL PUMP:

• Brand & Model: Parker Gear Pump

• Work Pressure: 0-20 mpa

• Rated Pressure: 20 mpa

• Maximum Pressure: 25 mpa

• Operating Rotational Speed: 0-3600 rpm

• Rated Rotational Speed: 3000 rpm

• Maximum Rotational Speed: 4000 rpm

• Displacement: 6 ml/r

• Flow Rate: 21.6 L/min

• Work Efficiency: 95%

• Over Hot Protection: N/A

• Over Pressure Protection: N/A

OPERATING RANGE:

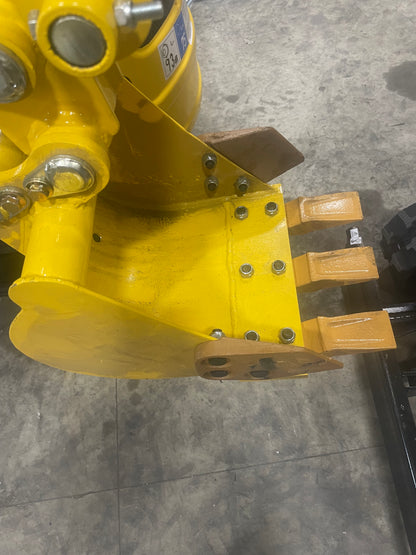

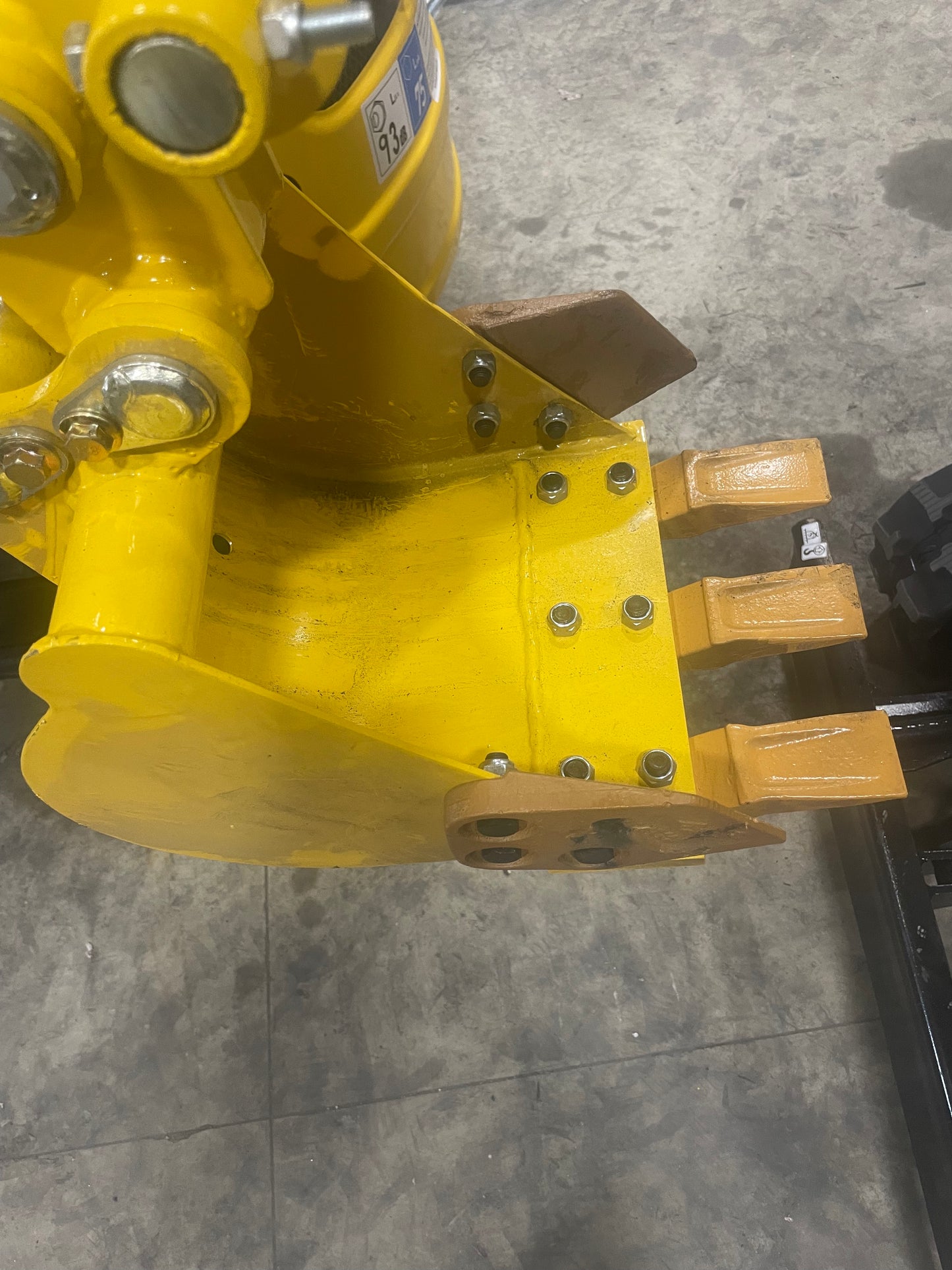

• Bucket Capacity: 0.025 cubic meters

• Bucket Maximum Digging Force: 800 kg

• Maximum Digging Force Of Stick: 600kg

• Maximum Digging Radius: 100” 3 foot)

• Maximum Digging Depth: 59” (4.9 foot)

• Maximum Digging Height: 98” (8.2 foot)

• Maximum Unloading Height: 69” (5.75 foot)

• Bucket Width: 15”

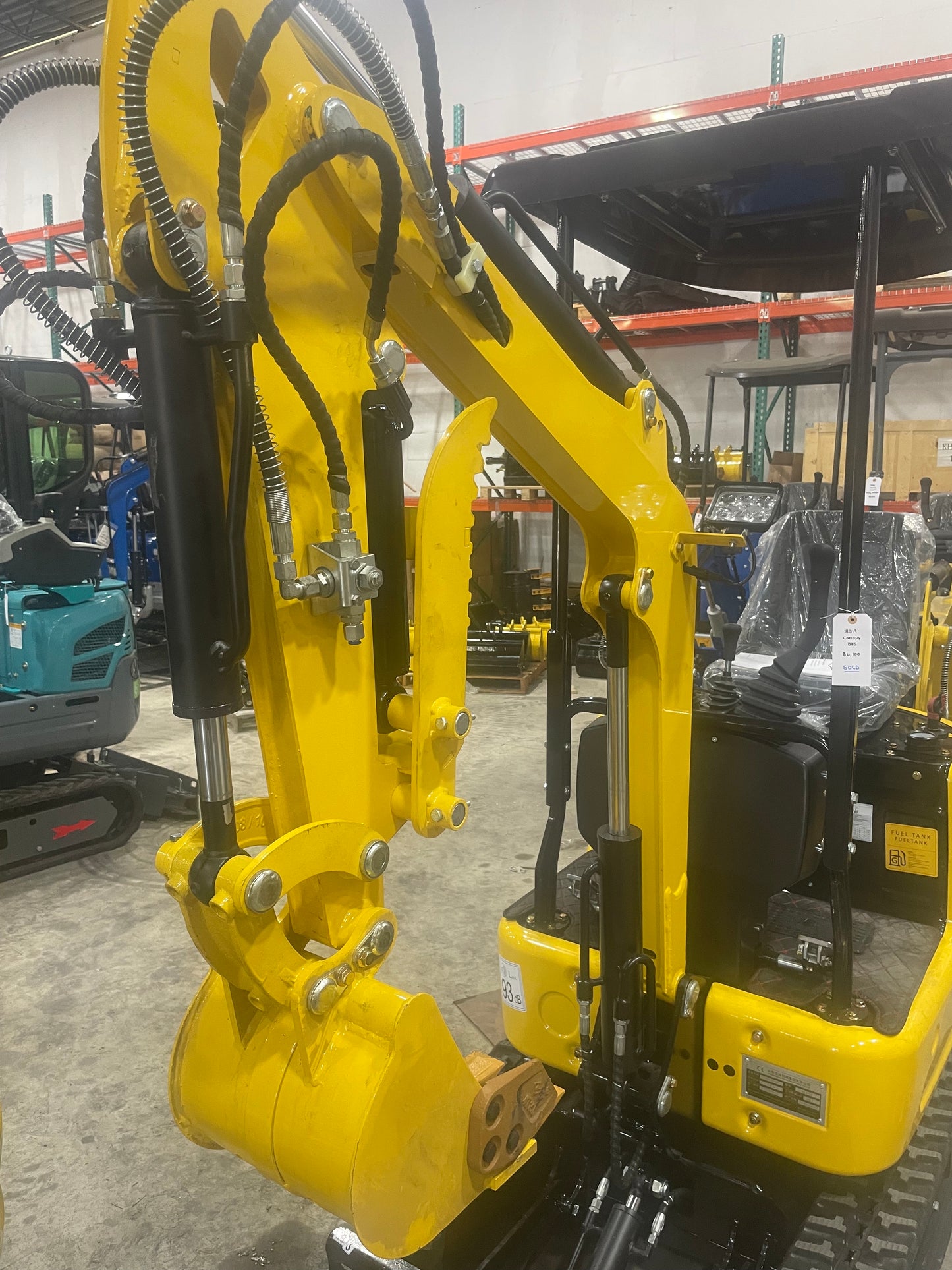

• Boom Length: 53” (4.4 foot)

• Stick Length: 28” (2.3 foot)

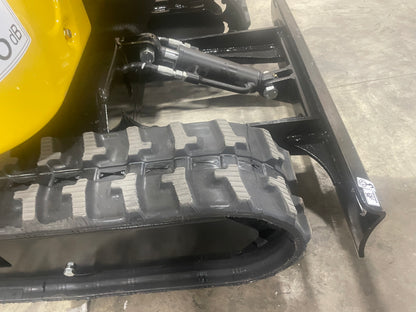

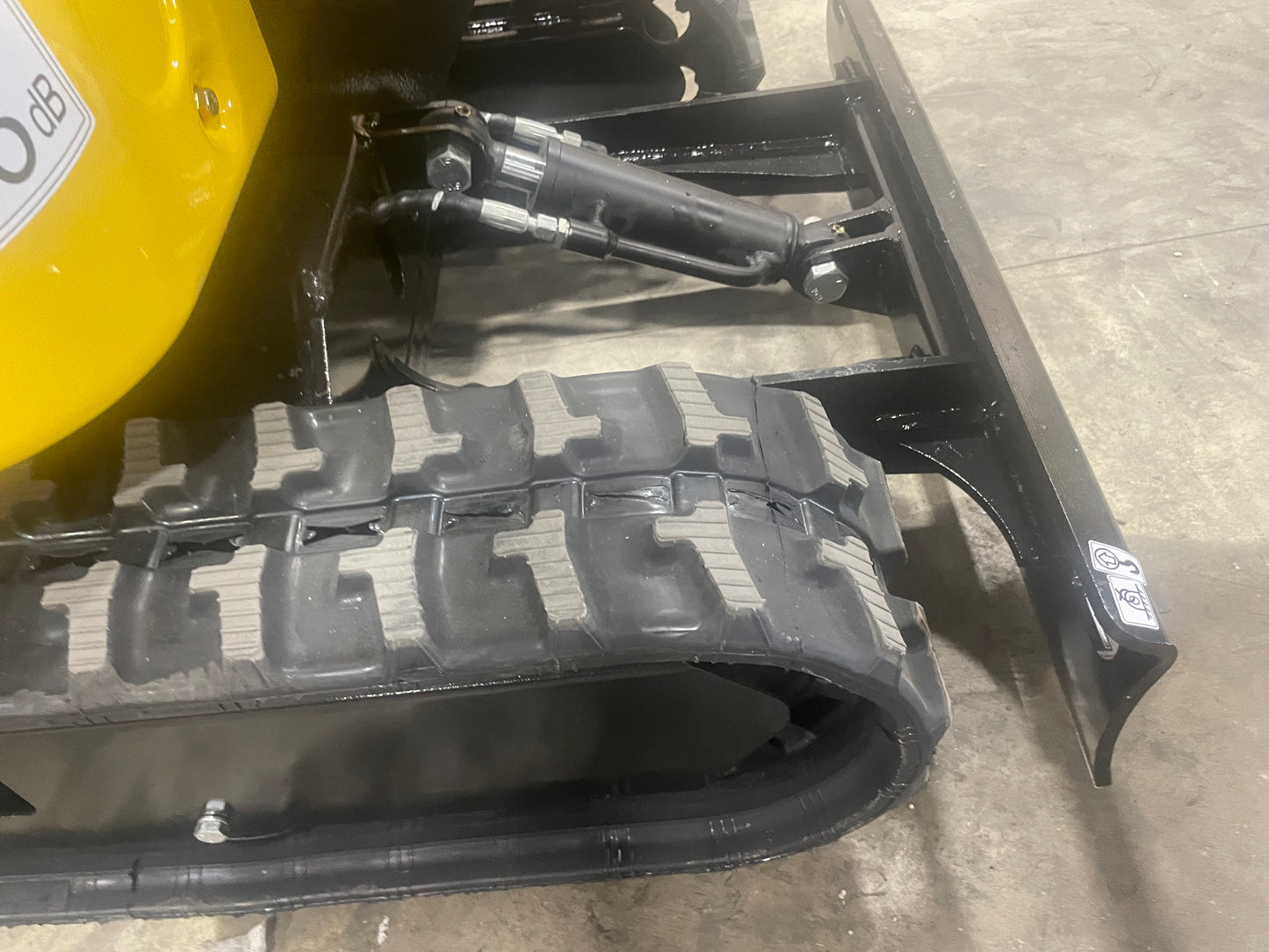

• Bulldozer Blade Width: 37”

• Swing Motor: Dali

• Traveling Motor: Dali

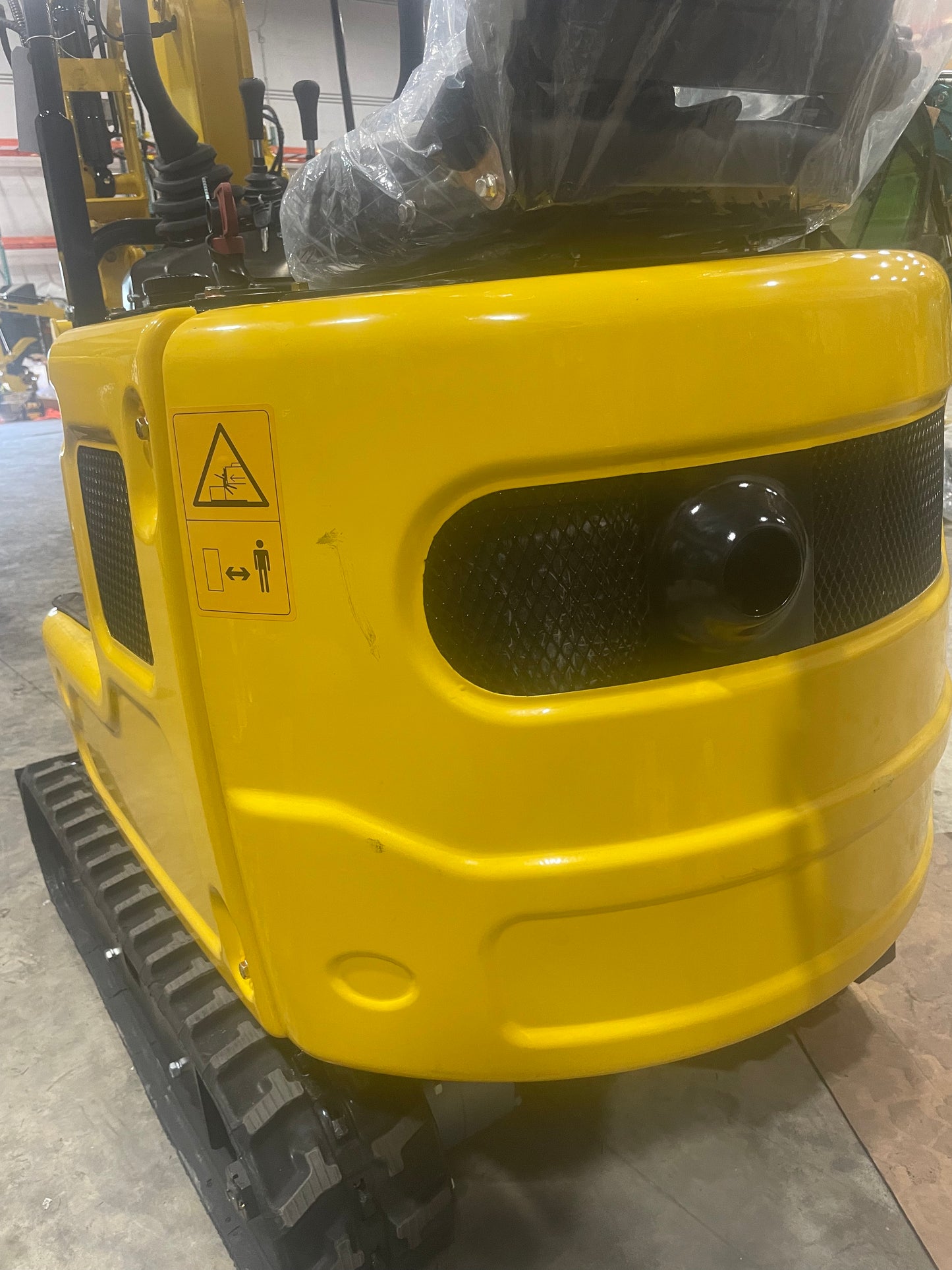

EASY MAINTENANCE: The fuselage (made from a single piece of steel plate) has multiple inspection ports for efficient machine inspection and maintenance.
